Key Features

  • Controlled over IP

  • Powered by PoE (20W)

  • Smooth and quiet operation

  • Variable speed

  • FreeD protocol for sending height data to a virtual reality production system

  • Software-configurable end stops

  • Programmable preset positions with speed control

  • API for integration with 3rd party software applications

  • Can be installed upright or inverted

  • Option sturdy base with locking wheels

  • Rugged construction

  • Optional mounting plate for up to 3 cameras

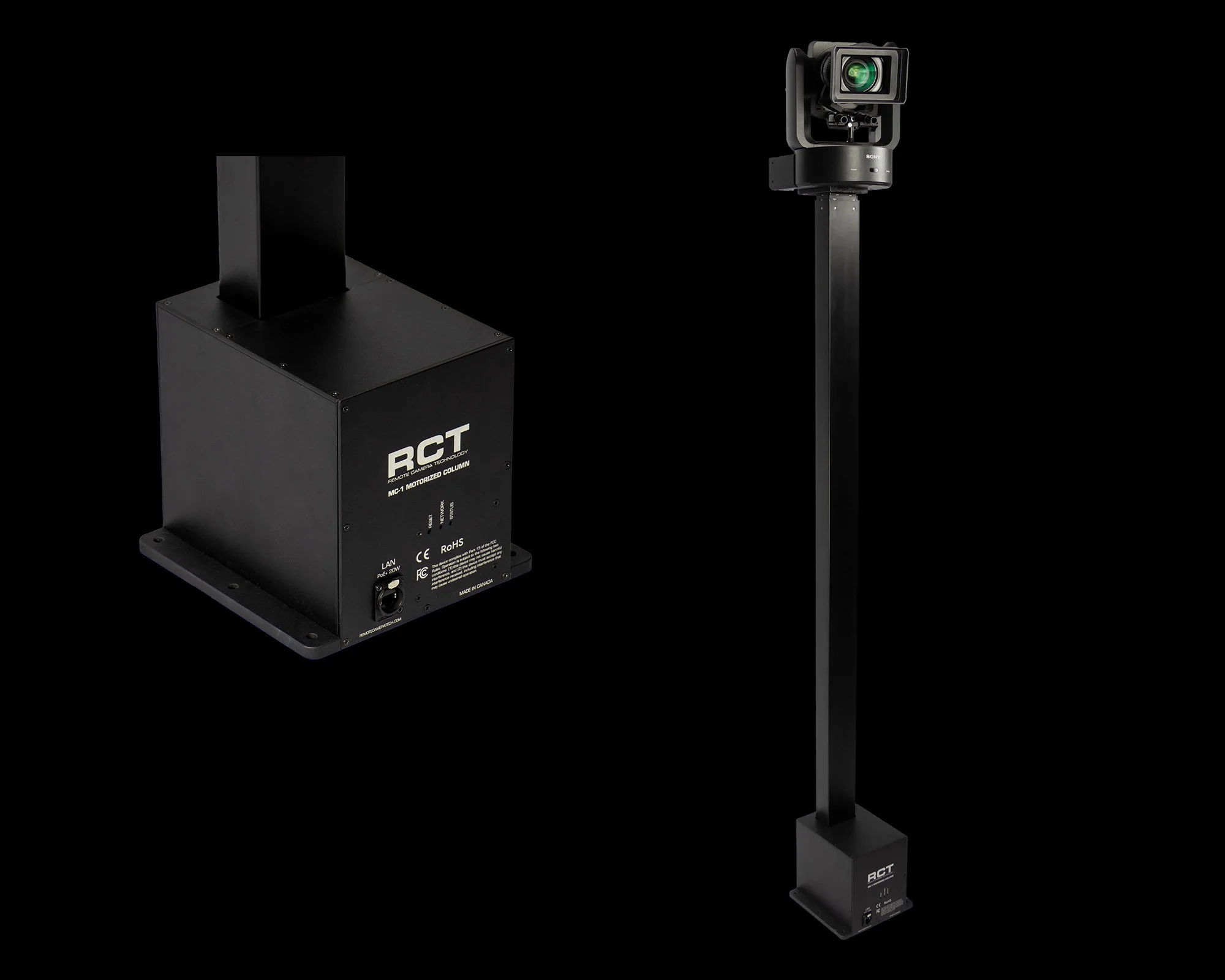

The MC-1 is a versatile motorized column designed for PTZ cameras and has features that are not available with similar products. It can be used for many applications to provide an elevated view with smooth motion suitable for on-air use.

Only one cable is required since it is powered by PoE and controlled over IP, and this makes installation and deployment much easier. The extended height, and extremely quiet movement, makes it suitable for situations where noise would be a distraction, such as classical music and theatre performances.

The MC-1 is controlled from the RCT CS-3 Control Surface and with the FR-1 Fluid Remote. It supports the FreeD protocol for sending height data to a virtual reality production system such as Vizrt Viz Virtual Studio, Brainstorm, Ross UX XPERIENCE, and Zero Density.

Maximum height: 4 m (13 ft.)

Minimum height: 1.59 m (5.2 ft.)

Maximum payload: 25 kg (50 lbs.)

Weight: 26 kg (56.5 lbs.)

Shown with Sony ILME-FR7
